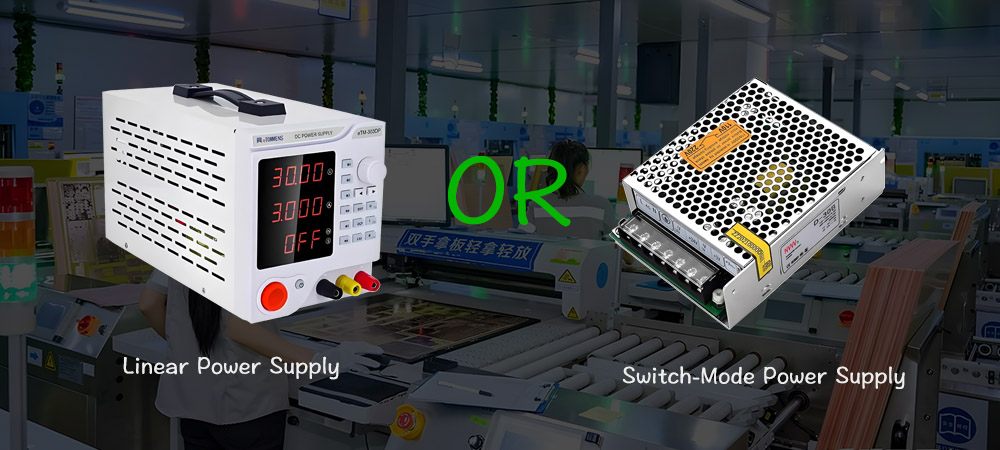

In electronic engineering, power supply design often determines the overall performance and stability of a system. Among the most widely used options are linear power supplies and switching power supplies. Each has its own strengths and trade-offs, making them suitable for different applications. This article provides a practical comparison of these two types of power supplies across key dimensions to help you choose the best fit for your design.
1. Basic Operating Principles
Linear Power Supply:
Regulates output voltage by dissipating excess energy as heat through series-pass elements. The regulation is smooth and continuous, without high-frequency switching.
Switching Power Supply:
Uses high-speed switching components (like MOSFETs) along with inductors and capacitors to convert and stabilize voltage efficiently through pulse-width modulation (PWM) and energy storage.
2. Efficiency
Linear Power Supply:
Typically has low efficiency (40%–60%) since surplus voltage is turned into heat.
Switching Power Supply:
Highly efficient (up to 80%–95%), making it ideal for energy-conscious designs and battery-powered systems.
3. Heat Generation and Thermal Management
Linear Power Supply:
Generates substantial heat and requires large heat sinks, especially under high current loads.
Switching Power Supply:
Produces significantly less heat, reducing the burden on thermal design.
4. Size and Weight
Linear Power Supply:
Often bulky and heavy, especially when using large transformers for AC-DC conversion.
Switching Power Supply:
Compact and lightweight, well-suited for modern portable and space-constrained applications.
5. Output Ripple and Noise
Linear Power Supply:
Offers extremely low ripple and noise, providing “clean” power—ideal for sensitive analog and RF circuits.
Switching Power Supply:
Tends to have higher ripple and switching noise, which may require additional filtering in noise-sensitive designs.
6. Electromagnetic Interference (EMI)
Linear Power Supply:
Virtually EMI-free due to the absence of high-frequency switching.
Switching Power Supply:
Can introduce EMI due to high-speed switching; requires good PCB layout, shielding, and EMI filtering techniques.
7. Cost Considerations
Linear Power Supply:
Generally lower cost for low-power applications. However, cost rises significantly with higher power demands due to thermal and size constraints.
Switching Power Supply:
Slightly higher component costs, but offers better overall cost efficiency in high-power or mass-produced applications.
8. Application Recommendations
| Application Area | Preferred Power Supply | Reason |
|---|---|---|
| Precision Analog Circuits | Linear Power Supply | Clean output, low noise and interference |
| High-Power Equipment | Switching Power Supply | High efficiency, cost-effective at scale |
| Embedded Systems | Switching Power Supply | Compact size, high efficiency |
| Medical/Test Equipment | Linear Power Supply | High stability, minimal interference |
9. Summary Comparison Table
| Feature | Linear Power Supply | Switching Power Supply |
|---|---|---|
| Efficiency | Low | High |
| Cost | Low (low power) | Low (high power) |
| Noise/Ripple | Very Low | Medium to High |
| EMI | Negligible | Higher (requires mitigation) |
| Size & Weight | Large | Small |
| Cooling Requirement | Requires heat sink | Less demanding |
| Stability | Excellent | Tunable |
10. Conclusion
When choosing a power supply, it’s not just about picking the one with the highest efficiency or the lowest noise. The right choice depends on your specific application needs. For example, audio systems and medical equipment often prioritize noise-free, stable power and benefit from linear supplies. In contrast, consumer electronics and embedded systems benefit more from the efficiency and compactness of switching supplies.
Ultimately, a well-informed selection tailored to your application scenario leads to the best balance between performance and cost. If you have any questions or requirements related to electronic manufacturing solutions, we invite you to contact us at sales@superpcba.com. Our expert team is dedicated to providing high-quality services and customized solutions to help your products stand out in the market.
